Imagine a world where enormous cement plants operate with maximum efficiency, minimal energy consumption, and reduced emissions. This is not a vision but a reality that can be achieved with Computational Fluid Dynamics, or CFD for cement plants.

In the heart of the cement production process lie two components: the preheater and the calciner. The preheater is responsible for the initial heating and decomposition of raw material, while the calciner further decomposes these materials before they enter the kiln.  CFD for cement plants can optimize these components to ensure they perform at their best.

It is like having X-ray vision that allows us to see and analyze fluid flows and chemical reactions inside the preheater and calciner. With this information, we can optimize their design, leading to more efficient and sustainable cement production.

In this article, we’ll delve into the workings, advantages, and prospects of CFD for cement production plants, emphasizing its pivotal role in optimizing preheater and calciner design.

Preheaters and Calciners: A Primer

Preheaters are a series of cyclone separators used to preheat the raw mix, enhancing the energy efficiency of the process. They use the hot exhaust gases from the kiln to heat the raw mix before it enters the kiln. This preheating process is critical as it saves energy and improves the subsequent processes’ efficiency.

On the other hand, calciners play a crucial role in calcination, which is the thermal treatment of minerals in the raw mix. This process drives off carbon dioxide from limestone, forming calcium oxide, a key ingredient in cement. The design and operation of calciners directly impact a cement production’s energy consumption and emission levels.

Common Challenges with Preheaters and Calciners

Designing preheaters and calciners in cement plants presents several challenges:

1. Complexity of the Process

Preheaters and calciners are complex systems that kick off the pyroprocess in cement manufacturing. Achieving optimal performance requires an expert understanding of the process, raw materials, and various factors like final product, CAPEX limits, height above sea level, and ambient temperatures.

2. Fuel Consumption

Calciners account for a significant proportion of total plant fuel consumption. Therefore, designing a calciner that can operate efficiently and stably is crucial for managing fuel costs.

3. Use of Alternative Fuels

The use of secondary or alternative fuels presents a unique challenge. The reliable ignition and burn-out of lumpy secondary fuels often demand design features contrary to the requirements of achieving a high and consistent degree of raw-level calcination.

4. Environmental Impact

The design must also consider the environmental impact, particularly emissions. This is especially important when using alternative fuels.

These challenges highlight the importance of CFD for cement plants in optimizing the design and operation of preheaters and calciners.

The Role of CFD for Cement Plants: An Overview

Here’s how CFD for cement plants can be a massive upgrade to existing preheaters and calciners:

1. Understanding Fluid Dynamics

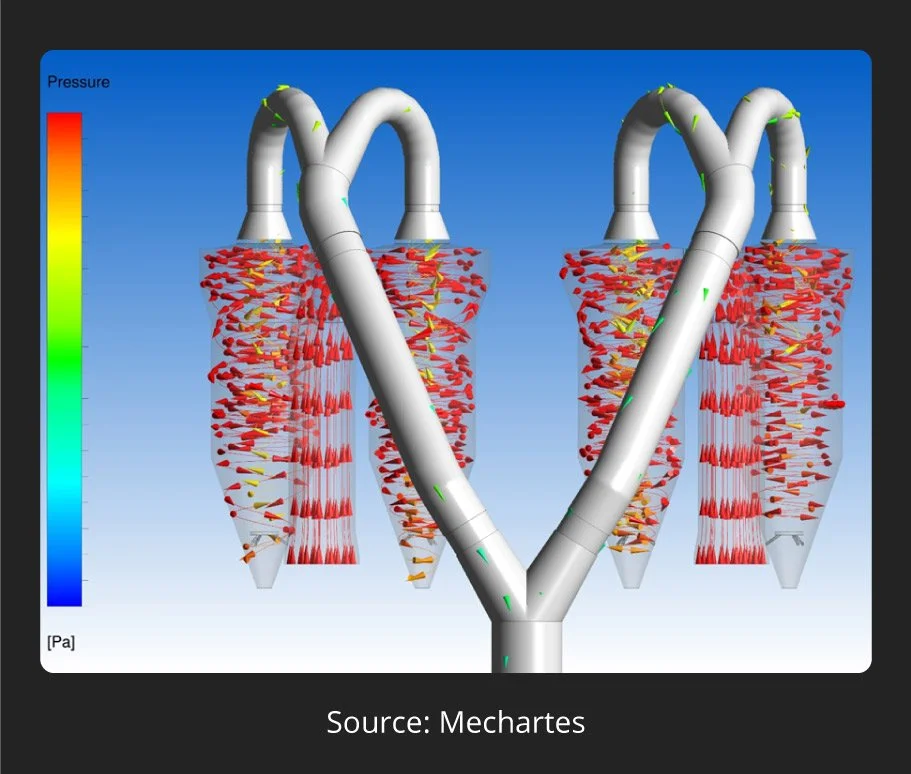

CFD provides a detailed understanding of the fluid dynamics within the preheater and calciner. This includes information on flow patterns, velocity, pressure, and temperature distributions. Such insights are crucial for identifying inefficiency and devising strategies for improvement.

2. Predicting Chemical Reactions

CFD can simulate complex chemical reactions, including the calcination process, where limestone (calcium carbonate) is heated to produce lime (calcium oxide), a key ingredient in cement.

3. Optimizing Design

By providing a detailed understanding of the processes within the preheater and calciner, CFD allows engineers to optimize their design. This can improve efficiency, reduce energy consumption, and lower emissions.

4. Troubleshooting

CFD for cement plants can also be a troubleshooting tool. For instance, if a preheater or calciner is not performing as expected, engineers can use CFD to identify the cause of the problem and determine the best solution.

Optimizing Cement Plant Preheater and Calciner Design with Mechartes’ CFD Expertise

Mechartes is a leading consultancy specializing in Computational Fluid Dynamics (CFD) analysis, providing crucial insights for optimizing preheater and calciner design in cement plants.

CFD modeling, a prevalent tool in Mechartes’ arsenal, is extensively employed to manage energy challenges in cement plants. It gives engineers a detailed understanding of the flow of air that is vital for optimizing the design and operation of preheaters and calciners, leading to improved efficiency, reduced energy consumption, and lower emissions.

Mechartes also offers training and consulting services to help engineers use the CFD tool effectively. Our professional engineering methodology delivers accurate simulation results, replicating the system’s physics at each parameter and phase.

Case Study: CFD for Preheater and Calciner Design

This case study focuses on the optimization of a preheater cyclone in a cement plant using a combination of computational fluid dynamics (CFD) simulation, design of experiment (DOE), and multi-gene genetic programming (MGGP).

The study initially modified the cyclone, which resulted in decreased efficiency. The cyclone was then simulated and validated using CFD for cement plants, and the effects of three dimensions on cyclone performance were investigated.

1. Methodology

The Reynolds stress model was used to simulate the turbulent gas flow, and the discrete phase model was used to calculate particle trajectories. The MGGP approach was employed to obtain efficiency and pressure drop equations, optimizing cyclone performance. Two-objective optimization using the Genetic Algorithm (GA) was performed to find the dimensions that minimize pressure drop and maximize efficiency. The DOE method was used to optimize the cyclone’s performance by varying the dimensions of the vortex finder, cylindrical height, and cone tip diameter.

2. Results

The results demonstrated the following:

• The optimized dimensions led to a decrease in pressure drop and increased efficiency.

• The enhanced cyclone design showed improved efficiency and reduced pressure drop compared to the original cyclone.

To learn more about the case study, refer to the article here.

Conclusion

The complexities and challenges inherent in these crucial components of cement plants demand a sophisticated approach. CFD for cement plants empowers engineers with a deeper understanding of fluid dynamics, chemical reactions, and the potential for design improvements.

Mechartes, a leading expert in CFD analysis, stands as a valuable ally in this endeavor. Their use of CFD modeling, training, and consulting services enables cement plants to navigate their energy challenges. By implementing optimized designs, engineers can achieve enhanced efficiency, reduced energy consumption, and lower emissions, ultimately contributing to a more sustainable future in cement manufacturing.
