Throughout my 16-year journey at Mechartés solving engineering problems across the Middle East, I’ve realized something: when it comes to datacenter cooling, the challenges we face aren’t just tough—they’re fundamentally unique to our region. This is especially true for data hall environments, which form the heart of any datacenter operation and where thermal management is most critical.

This was the hot topic at our Mechartés booth last week during the DatacenterDynamics’ DCD Connect | MENA event in Dubai.

Without appropriate engineering analysis including Computational Fluid Dynamics (CFD) Analysis, even the most sophisticated equipment can be wrongly deployed in datacenters.

In this article, we will focus specifically on data hall environments and how CFD analysis can optimize their thermal management. In future articles, we’ll explore other critical datacenter areas, including external spaces and mechanical rooms.

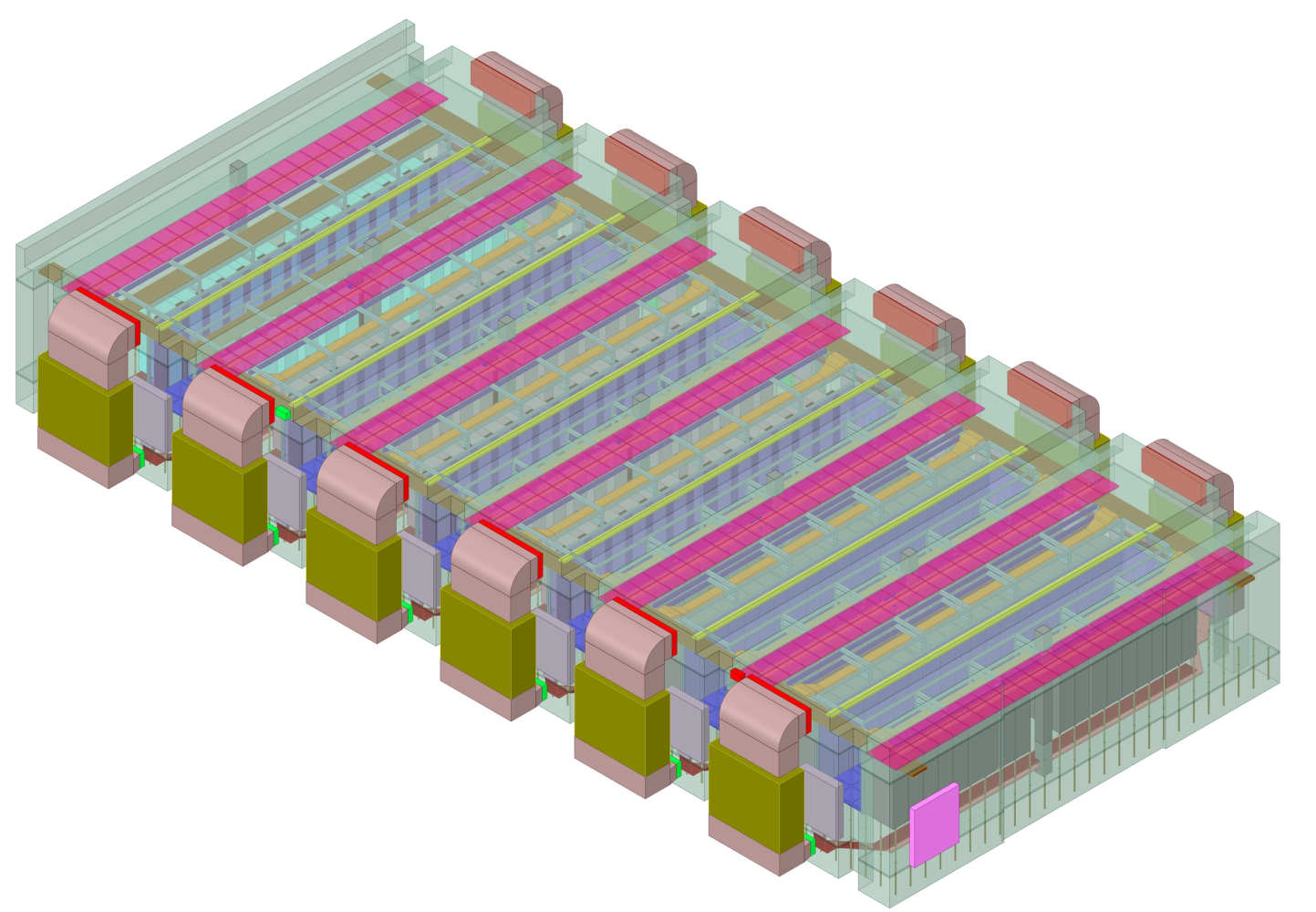

3D CFD Model

The Middle East Datacenter Challenge: It’s Hot & Complex

Cooling headaches are common everywhere, but what we face here exceeds the normal worries:

• We’re often coping with 45°C+ ambient conditions for weeks on end, pushing cooling systems to their maximum limits.
• Coastal areas like Dubai and Abu Dhabi, where the humidity makes everything a sauna.
• The ongoing dust and airborne particles in the area add more maintenance problems for precision cooling tools.

With projects now routinely needing solutions for 15-50 kW racks, the fast adoption of AI has greatly raised rack densities. As floor areas now span thousands of square meters, the complexity of airflow patterns becomes exponentially more challenging to manage without advanced simulation. Space has become a premium—areas that once housed 2 MW are now required to support 10+ MW of load, dramatically increasing the complexity of airflow management.

Many facilities have struggled under these extreme circumstances without proper thermal analysis and regional adaptation. The unique conditions of hyperscale data centers require specialized approaches tailored to our distinct environmental challenges. These challenges are particularly acute in data halls, where the highest heat loads are concentrated and where minor cooling issues can rapidly escalate into critical failures.

How CFD Can Help Transform Datacenter Cooling

This is where CFD proves its value in data hall optimization – it has fundamentally transformed how we approach datacenter cooling challenges. CFD analysis enables the creation of highly detailed models that simulate airflow and temperature patterns before installation or often before the construction begins. While some clients initially deliberate on the investment in comprehensive CFD analysis, once they witness the critical issues identified during pre-construction stage, the return on investment becomes immediately apparent.

1. Finding Important Airflow Problems

The most significant advantage of CFD lies in its ability to reveal otherwise invisible airflow behaviors in data hall environments that would be impossible to predict without simulation. Through years of datacenter analysis work, we have identified several recurring issues:

• Supply air bypass situations where cooling airflow does not reach critical equipment, especially common in facilities with raised floor layouts.
• Patterns of hot exhaust recirculation that degrade cooling efficiency and server rack intake temperatures.
• Pressure differential zones producing spots that cause localized overheating.
• Uneven cooling distribution, in which front-row equipment gets unequal cooling relative to rear positions.
• Improper sizing of cooling units – particularly when the static pressure isn’t properly calculated, resulting in insufficient cooling capacity delivery despite having adequate equipment specified on paper.

Repositioning few floor tiles, for example, can help attaining ASHRAE recommended temperature range at important server intakes—a change nearly impossible to find using traditional techniques.

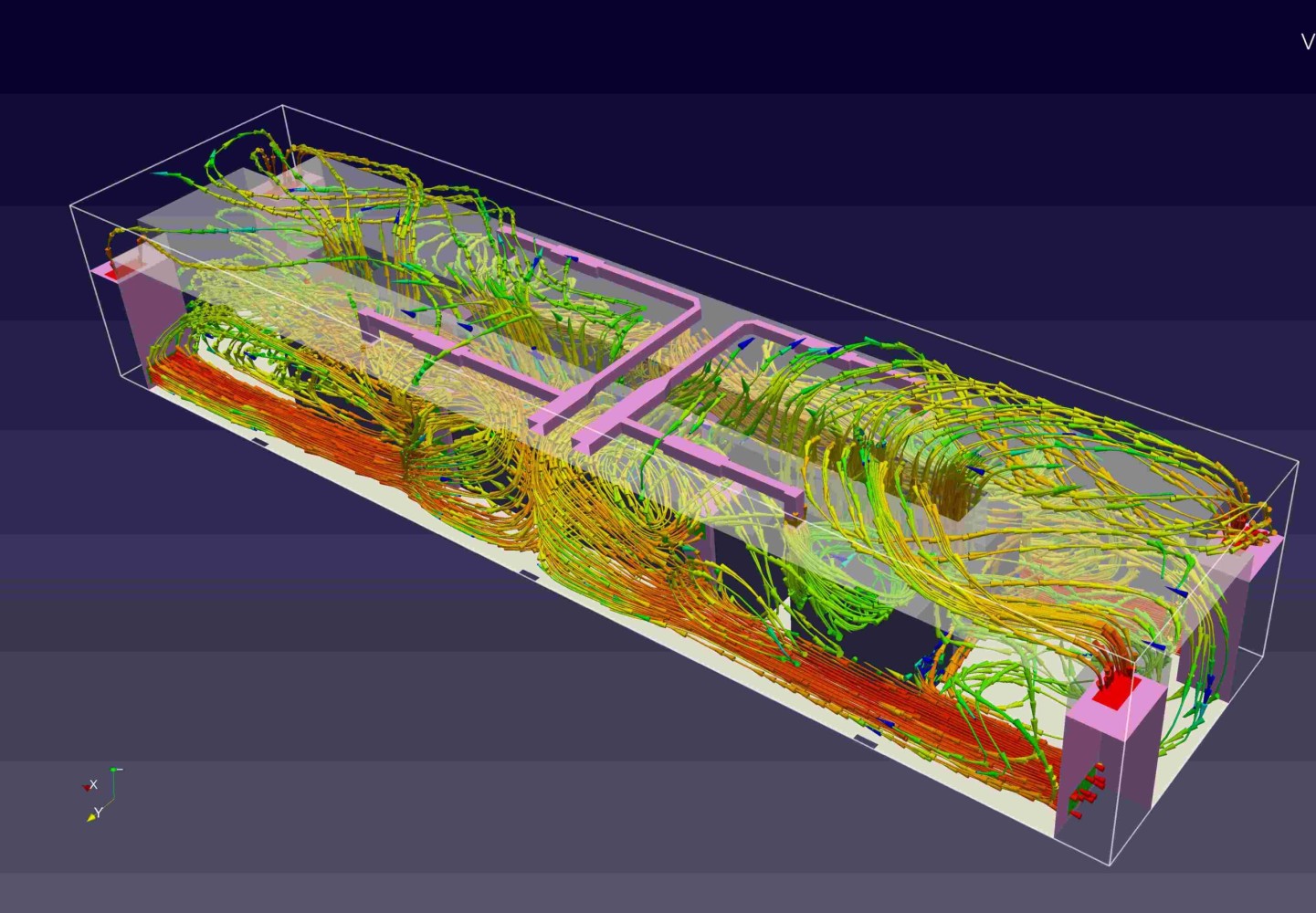

Velocity Vector – Sample Image

2. Validating Contingency Plans

The hot and humid climate offers very little leeway for cooling system breakdowns. Through thorough simulations, CFD modeling offers vital insights for contingency planning:

• Validation of N+1 or N+2 redundancy under peak ambient conditions.
• Thermal Runaway – Thermal study while power is transferred to backup systems or power failure.
• Establishing operational windows prior to breach of critical thresholds.
• Verifying Liquid cooling solutions or options when air cooling reaches its limits.

These analyses have directly influenced maintenance protocols for numerous datacenter facilities. In certain configurations, where CFD revealed critical temperature thresholds could be reached in under 6 minutes during specific failure modes, maintenance strategies were fundamentally redesigned.

3. Improving Containment Solutions

Particularly in Middle East data hall settings, where conventional methods frequently call for modification, containment solutions call for thoughtful analysis and validation via CFD.

• Comparative evaluation of the efficacy of hot versus cold aisle containment.
• Containment project ROI assessment.
• Adjustment to regional environmental issues.

4. Mechartes Advanced Modeling Capabilities

What truly sets our approach apart at Mechartés is our attention to detail in modeling. We don’t just simulate ideal conditions – we model the real world. This includes:

• Precise modeling of leakages and obstructions that impact airflow patterns
• Detailed representation of server racks with their actual heat dissipation profiles
• Accounting for actual operating conditions of cooling units, not just nameplate ratings
• Integration with our experienced engineering team who understand not just the software, but the physics behind every simulation

Our CFD models are so detailed that they capture cable tray impacts, blanking panel gaps, and even minor air leakages – factors that competitors often overlook but can significantly impact real-world performance.

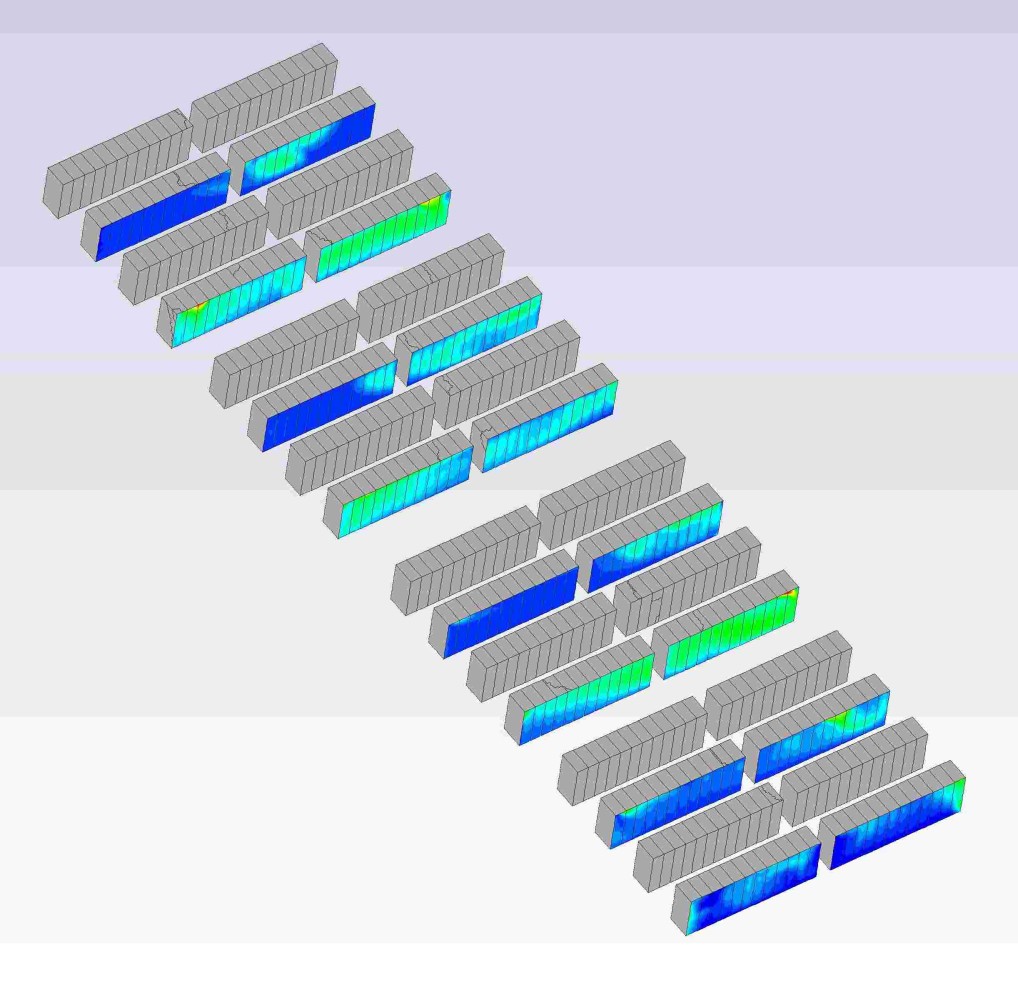

Temperature Profile – Sample Image

5. Infrastructure Future-Proofing

Datacenter thermal infrastructure is a significant capital investment that has to fit changing technological needs. CFD modeling offers strategic insight for capacity planning:

• Establishing maximum supportable power densities.
• Evaluating effects of workload redistribution.
• Forecasting equipment refresh cycle performance.
• Mapping out expansion potential for development purposes.
• Assessing capacity for IT loads beyond originally designed capacity or re-distribution of the load.

While this article focuses specifically on data hall thermal management, it’s worth noting that CFD analysis is equally valuable for other critical datacenter areas. In upcoming articles, we’ll explore how CFD can optimize external areas and mechanical rooms – each with their own unique challenges in the Middle East climate. Stay tuned as we continue this series on comprehensive datacenter thermal optimization.

After numerous datacenter projects across the Middle East, it is clear that CFD analysis has developed from a supplementary tool to a fundamental component of effective thermal management plans in data halls. The real value is in finding and addressing complicated thermal problems before they appear in operational settings, therefore avoiding expensive downtime and emergency remedial actions.

What cooling difficulties are you experiencing with your datacenter projects? Have you used CFD in your thermal design process? Would love to hear your thoughts via comment or message.
